Specification:
1) Positional Accuracy: 50 centimeters precision when working with concurrent GNSS.
2) Velocityprecision: 0.1m/s
3) Max height: 50000m
4) Max speed: 515m/s
5) Max acceleration: 4G
6) Max update rate: up to 10Hz
7) Sensitivity
Tracking & Nav.: -167dBm; Reacquisition: -163dBm; Cold start: -151dBm; Hot start: -159dBm.
8)Time to first fix: Cold start: 26s, Hot start: 1s.
9)Connect ports
Power supply: voltage 5±5%V DC, current 50~55mA
10) Ports
A. GPS UART interface, baud rate: 9.6K
B. Geomagnetic I2C interface

Features :

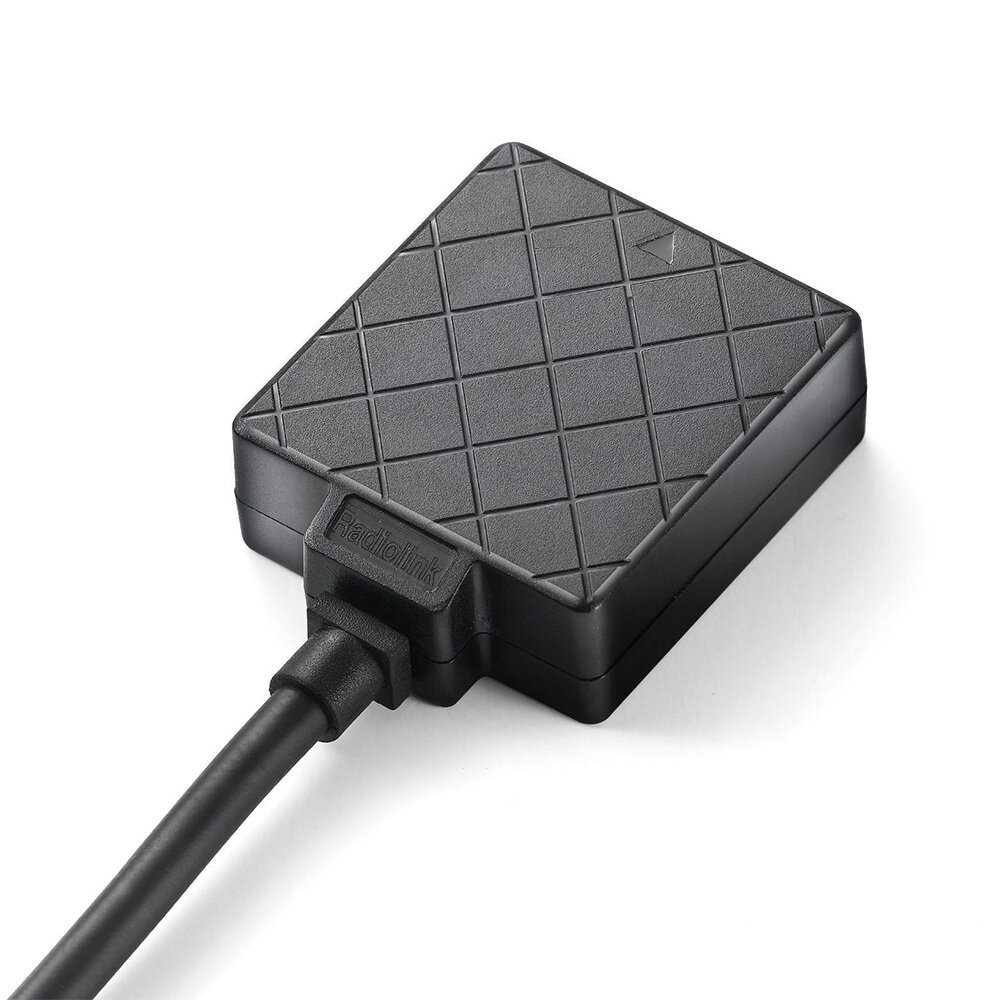

u3010Super Mini Sizeu3011: This mini GPS for Radiolink miniPIX flight controller, only 1.25*1.18*0.47in,0.7oz, itu2019s perfect for you racing drone and quadcopter.

u3010Excellent Stableu3011: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.

u3010Top Configurationu3011: Design with U-box UBX-M10050(M10), 72-channel, is better than GNSS 7N. 2.5dbl ceramic antenna.

u3010Positional Accuracy and Quicku3011: 50 centimeters precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1. Triple-mode operation is available.

u3010Dual Anti-interference Technologyu3011:De-interference- Two-stage filtering with 78db attenuation effectively filters out-of-band interference.Anti-interference- In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a small amount of interference signals that pass the filter. Effectively resist strong signal interferenc, such as high-power image transmission on drones, high-voltage lines, etc.

Mini Size:

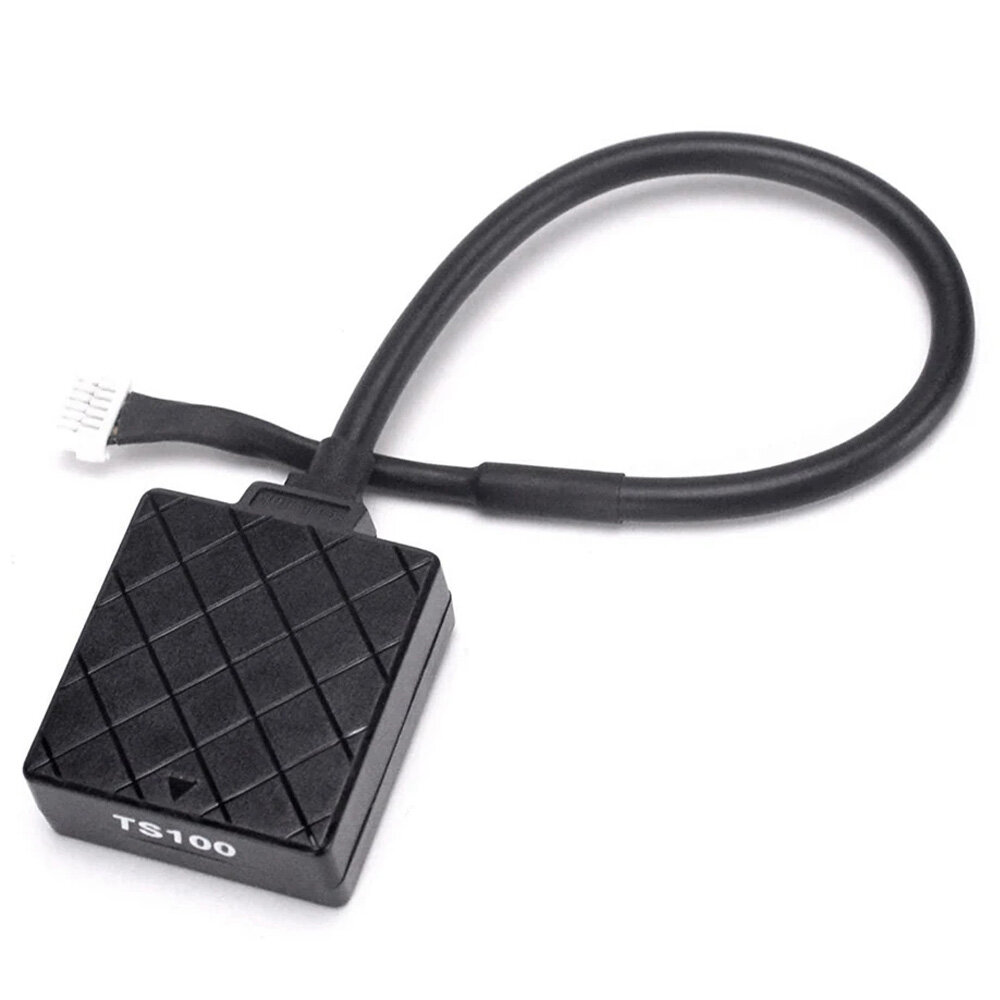

Super mini: The size is for 1.25*1.18*0.47in and the weight is 0.044Lb; Pilot can practice with super simple models when TS100 work with Radiolink mini flight controller and crossflight flight controller, best choice for racing drone beginner.

Top Configuration:

-GPS decoder chip: Radiolink M10N GPS, with u-blox UBX-M10050(M10N), 72-channel, is much better than single GNSS 7N.

-Geomagnetic: QMC5883L which with same technology as HMX5983 from Honeywell.

-Antenna: 2.5dbi high gain and selectivity ceramic antenna.

-Double Filter: SAWF(surface acoustic wave filter) from Murata.

Excellent Performance:

-50 centimeter position accuracy, positioning 20 satellites in 5 seconds at open ground and valley station-keeping ability.

-The pre-LNA low loss design that exact match the ceramic antenna have enhances the ability to capture extremely weak signals even though interference by ideal filter.

-Optimized circuit layout make sure it can seizing very weal signals and effective suppression of input interference at the same time.

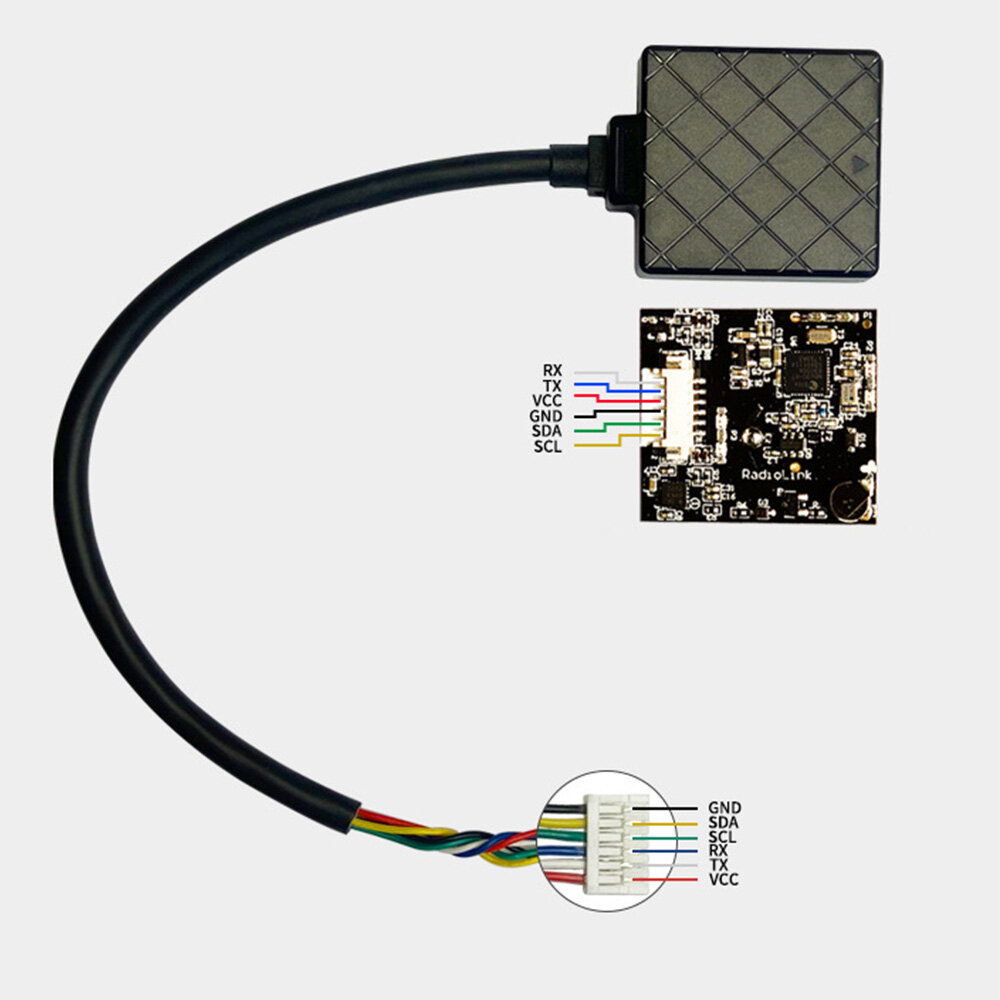

Definition of Wire:

Please check the Wire definition for Radiolink MiniPIX, TurboPIX and GPS, easy to use and connect, you can use the mini GPS with your F3 or F4 flight controller, maybe need to change the connect port ( depend on your FC connect port ).

Package Included:
1x Radiolink M10N GPS Module
